Description
- Powerful, dynamic response
- The widest dynamic range of any Fanatec Base
- 25 Nm holding torque (33 Nm peak overshoot)
- Consistent performance under the most extreme conditions
- Aluminum internals for strength and precision
- Aluminum motor shaft
- Aluminum bearing seats (front and rear)
- Full metal casing for strength and heat dissipation
- Diecast aluminum front and rear casing with diamond cut accents
- Anodized aluminum body with cooling fins also functions as the rail mounting system
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Direct Drive servo motor
- Second-generation architecture, custom-designed in Germany specifically for sim racing
- Optimized thermal management, passive cooling
- Reinforced electronics and heatsink
- Optimized skew angle on rotor reduces magnetic cogging torque
- Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
- FullForce technology
- Super low-latency detail effects through fine motor frequency control
- Fuses high-fidelity vibration cues with the core force feedback signal to deliver a more immersive driving experience
- 10 cm Shaft Extension included
- Allows optimal monitor positioning in front of base and behind wheel
- Optional installation

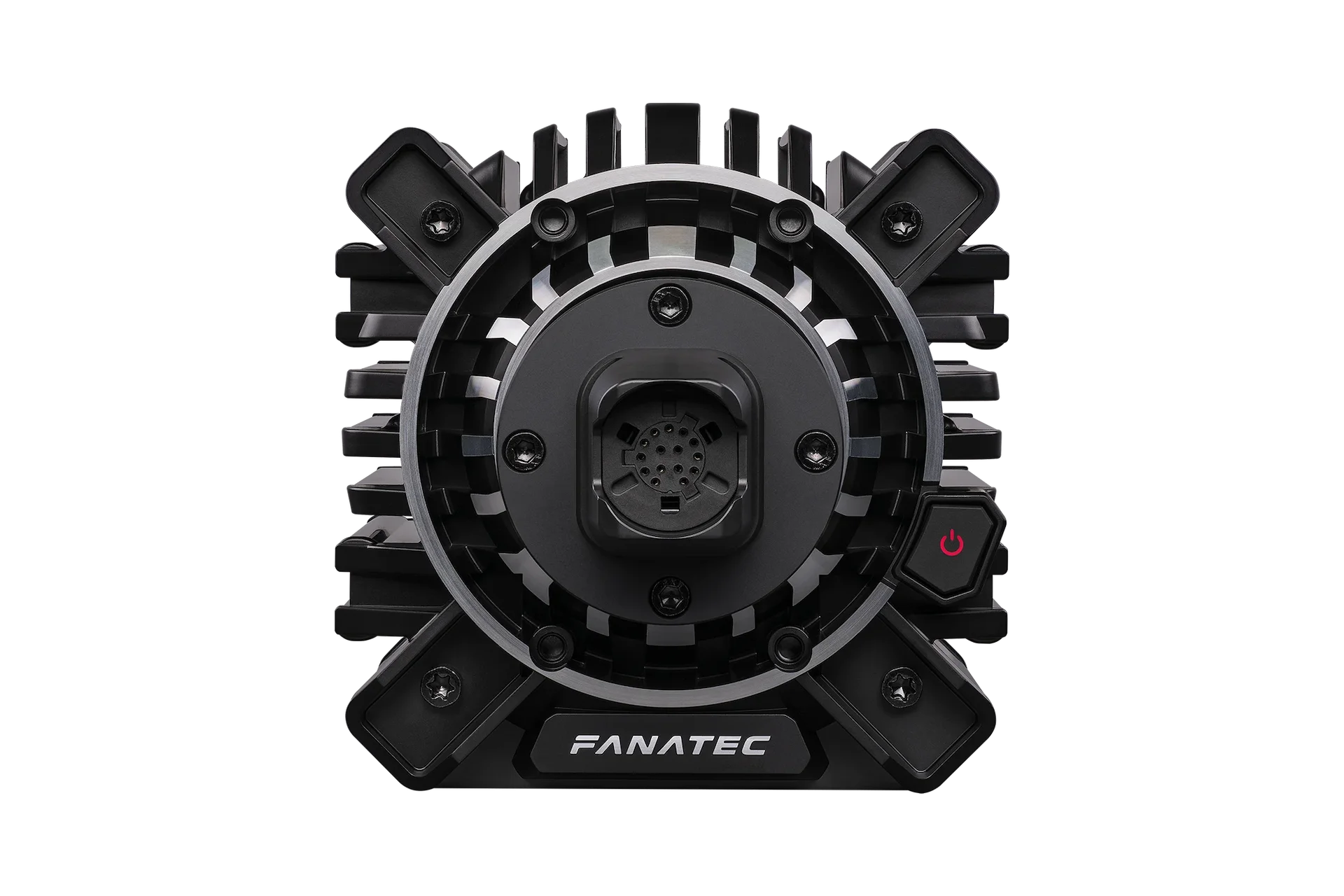

- QR2
- Motor design optimized for QR2 with integrated electronics module
- Cable-free delivery of power and data to Fanatec Steering Wheels
- Diecast aluminum with CNC-machined finish
- Motorsport-derived quick release system
- Designed for Windows PC, can be used on Xbox when fitted with an Xbox licensed Steering Wheel
- Standard and Advanced Tuning Menus let beginners get started instantly, while giving experienced drivers precise control over force feedback settings
- High-resolution (contactless) Hall-position-sensor
- Rotation: 2520 degrees (electronically limited, adjustable)
- Compatible with entire Fanatec ecosystem (see Compatibility section for details)

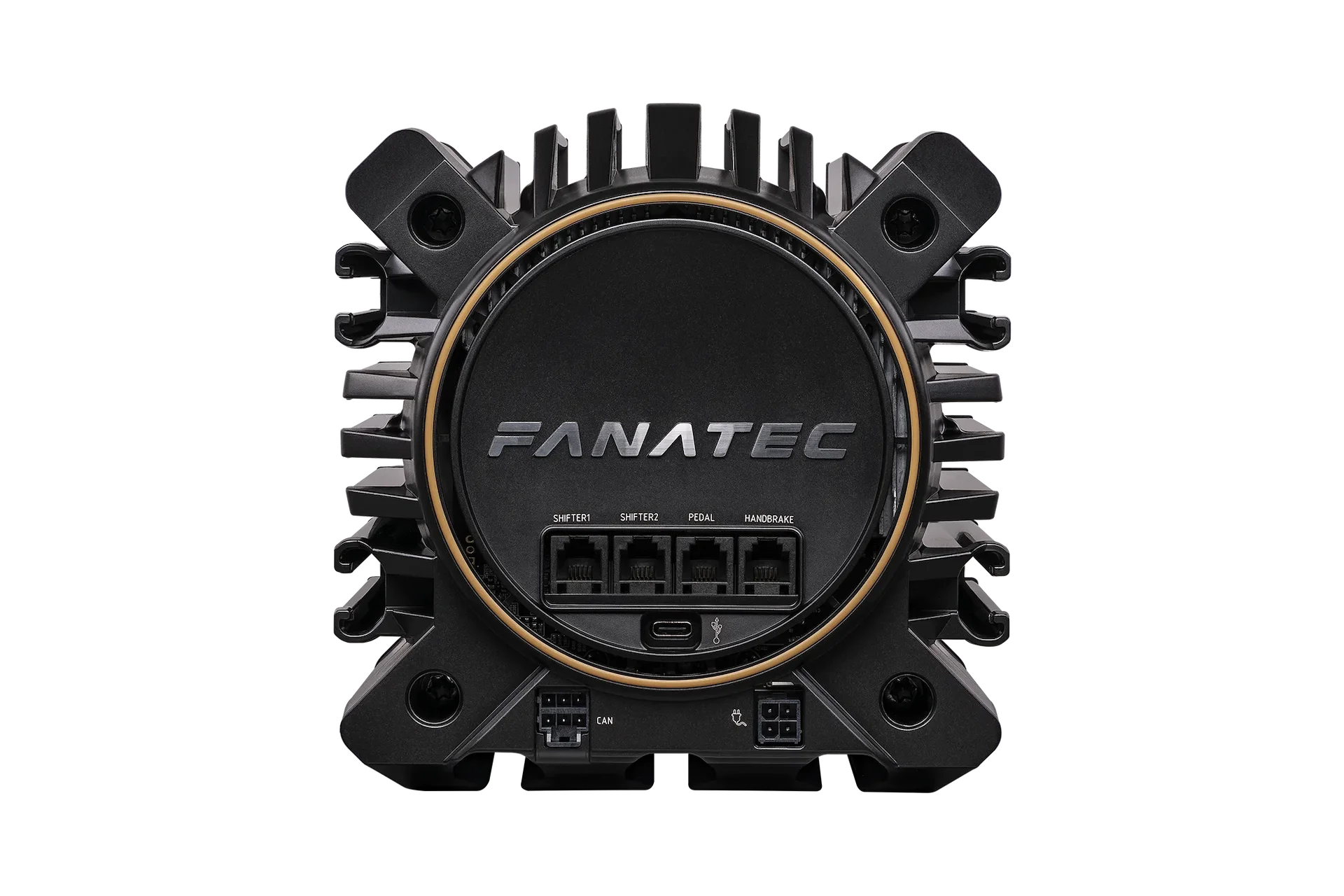

- Ports:
- Power supply
- USB-C to PC / console
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- CAN (for future Fanatec
